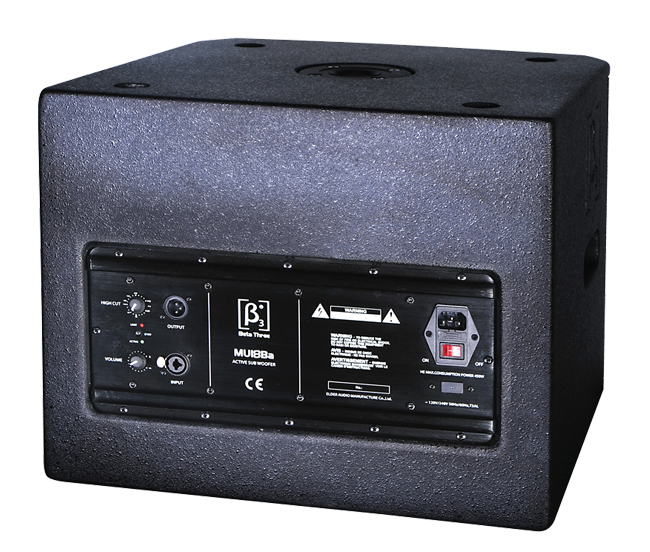

תאור המוצר: סאב מוגבר
MU18A : דגם
500W 124DB : עוצמה
גודל: "18
פונקציות: עוצמה + כיוון תדר
כיווני סאונד: דרך המגבר
הגנות לרמקול: לימיטר להגנת האלמנטים והמגבר מפני ווליום שמעבר ליכולת הרמקול
משקל:11 ק"ג
Key Features and Benefits:
- High output SPL and sensitivity.
- 1x18" high power low frequency transducer with 100mm voice coil.
- Sensitivity 97dB, max SPL 124dB.
- RMS 500W, peak 2000W.
- Built-in power amplifier module.
- Master volume control.
- XLR input and output connectors.
- Built-in variable crossover 80Hz-250Hz high cut.
- Phase switch.
- Computer aided design to optimise frequency and phase response.
- Cabinet designed for FOH use.
- Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction.
- Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet.
- Powder coated grill with foam backing.
- Durable Polyurethane textured base paint.
System Specifications:
| Construction: |
18mm Birch Plywood |
| Transducers: |
1x18" LF |
| Frequency Response (-3dB): |
40Hz-300Hz |
| Rated Power: |
500W (RMS), 1000W (Program), 2000W (Peak) |
| |
|
| Sensitivity (1W @ 1m): |
97dB |
| Maximum SPL (1W @ 1m): |
124dB/130dB (peak) |
| Rated Impedance: |
8 Ohms |
| Connector: |
1x Combo 6.35/XLR Input, 1x XLR Output |
| Power Supply: |
110V / 220V |
| Dimensions (WxDxH): |
600mm x 640mm x 550mm |
| Packaging Dimensions (1 piece/pack): |
750mm x 710mm x 670mm |
| Net Weight (1 piece/pack): |
33 kg |
| Gross Weight (1 piece/paek): |
44 kg |
|
|
| |
|
| |
| |
| |
| |
| |
|
|
